Pole-mounted Solar Panels

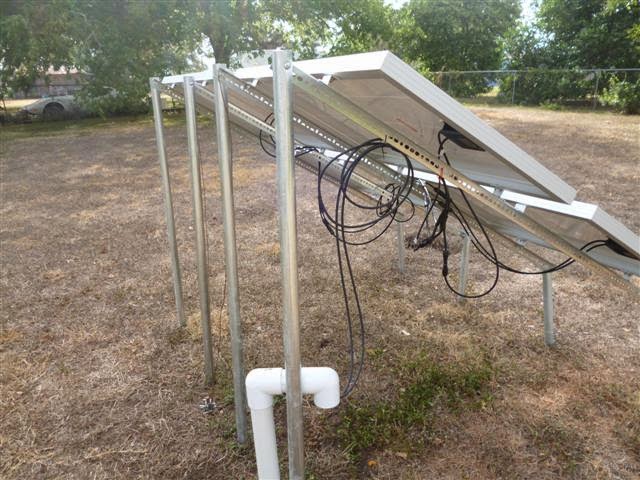

The conversion of my garage to solar power is completed and hopefully it will lower my utility bill. It took a while to get everything set up and working. My panels were pole mounted in order to make it easier to service the solar panels.
A total of four 100 watt solar panels were used to charge a battery bank of four 100 amp hour batteries. Two inverters were used to furnish power. A 100 watt pure sine wave inverter was used for lights and to power a small air compressor. An 1800 watt pure sine wave inverter was set up to furnish power for my power saws. This covers the majority of my power usage in the garage. I’ll also being running a fairly low wattage heat lamp for the chickens in the winter.
A solar panel kit from Grape Solar
was used for this project and came with most of the necessary wiring, a charge controller and an inverter. There is additional information posted in my product review. A separate grounding rod was installed on the panels and the solar disconnect that was installed.
My grid-powered outlets are still functional and can be used if my solar power system goes down for some reason but won’t be used unless absolutely necessary. With the completion of this project, my storage shed, greenhouse and garage are now on solar power.
Part Two will show my battery bank, solar disconnect and charge controller set-up.
Part Two will show my battery bank, solar disconnect and charge controller set-up.
Got solar-powered garage?
